Gold Detectors
GPX 4500
Highlights:
Application | Gold Prospecting & Deep Relic |
Technology | MPS, DVT & SETA |
Frequency/Transmission | Bi-Level, Advanced Pulse Induction |
Coil (standard) | 11″ Round Double-D plus 11″ Monoloop |
Audio Output | 6.35mm (1/4″) headphone/speaker jack. |
Headphones Supplied | Koss 100 ohm headphones. |
Visual Display | LCD screen 64×128 pixels, transflective. |
Backlight | Yes with adjustable automatic ‘time-out’. |
USB Connectivity | – |
Memory | Setting changes saved automatically and remain until changed or reset. Factory Presets can be restored on start-up. |
Depth Indication | – |
Detect Modes | General, Deep & Custom. Custom Modes are: Hi Mineral, Hi Trash, Patch & Test A. |
Discrimination | Iron Reject: range 1 to 10 & All Metal. |
Timings | Enhance, Normal, Sensitive Smooth, Salt Course, Sensitive Extra & Sharp. |
Audio tone | Variable Control 1 to 100. |
Audio Type | Quiet, Normal, Deep & Boost. |
Ground Balance | Automatic Ground Balance, Fixed & Tracking: Slow, Medium & Fast. |
Ground Balance Type | General, Specific & Ground Balance Off. |
Trash Density | – |
Pinpoint | Quick-Trak button. |
Sensitivity Adjust | Rx Gain 1 to 15. |
Tune / Noise Cancel | Automatic & Manual 0 to 255. |
Threshold | Adjustable turn control. |
Target Volume Adjust | Volume Limit 1 to 20. |
Battery | Lithium-Ion with built-in amplifier (up to 12 hrs). Supplied with mains and vehicle charger. |
Low battery alert | Audio alert. |
Length | 1100mm – 1300mm (43.3″ – 51.2″). |
Weight | 2.4kg (5.3lbs) (ex. battery). |
Warranty | 3 years control box & coil. |
GPX 5000
Highlights:
Application | Gold Prospecting & Deep Relic |
Technology | MPS, DVT & SETA |
Frequency/Transmission | Bi-Level, Advanced Pulse Induction |
Coil (standard) | 11″ Round Double-D plus 15 x 12-inch Monoloop. |
Audio Output | 6.35mm (1/4″) headphone/speaker jack. |
Headphones Supplied | Koss 100 ohm headphones. |
Visual Display | 64 x 128 pixels, transflective with white backlight. |
Backlight | Yes with adjustable automatic ‘time-out’. |
Product ID | 23149 |
USB Connectivity | – |
Memory | Setting changes saved automatically and remain until changed or reset. Factory Presets can be restored on start-up. |
Depth Indication | – |
Detect Modes | General, Deep, Hi-Mineral, Patch, Hi-Trash & Pinpoint (all user programmable) |
Discrimination | Iron Reject: range 1 to 10 & Off (All Metal). |
Timings | Normal, Sensitive Extra, Enhance, Sharp, Sensitive Smooth, Coin/Relic, Salt/Gold & Fine Gold. |
Audio tone | Variable Control 1 to 100. |
Audio Type | Quiet, Normal, Deep & Boost. |
Ground Balance | Automatic Ground Balance, Fixed & Tracking: Slow, Medium & Fast. Quick-Trak button. |
Ground Balance Type | General, Specific & Ground Balance Off. |
Trash Density | – |
Pinpoint | – |
Sensitivity Adjust | Rx Gain 1 to 20. |
Tune / Noise Cancel | Automatic & Manual 0 to 255. |
Threshold | Adjustable turn control. |
Target Volume Adjust | Target Volume 1 to 20. Volume Limit 1 to 20. |
Battery | Lithium-ion rechargeable battery 68Wh with in-built amplifier for speaker use. Approx. 12 Hours use. Supplied with mains and vehicle charger. |
Low battery alert | Audio alert. |
Length | 1100mm (43.3”) à 1300mm (51.2”). |
Weight | 2.4kg (5.3lbs) including 11” coil (excluding battery and accessories). Battery weight 780g (1.7lbs). |
SDC 2300
Highlights:
Application | Gold Prospecting (waterproof 10ft) |
Coil (standard) | 8″ Round Monoloop |
Audio Output | Built-in speaker, Minelab headphones (supplied), Koss Waterproof Headphones (not supplied), Pro Sonic Wireless Audio (not supplied) |
Visual Display | 9 LEDs indicate detection, battery status and threshold level; 1 low battery warning LED |
Length | Extended: 1500 mm (59.1″) Collapsed: 400 mm (15.7”) |
Weight | 2.3 kg (5.1 lbs) |
Batteries | Li-on Battery Pack with Charger, 4 x C-cell 1.2 V 5000 mAh Rechargeable (not supplied), 4 X C-cell 1.5 V Alkaline (not supplied) |
Detect Modes | Normal (1-5 Sensitivity range) & Salt (1-3 Sensitivity range) |
Noise Cancel | Manually Initiated, Automatic Scanning |
Ground Balance | Automatic Ground Tracking (AGT) Fast Ground Balance |
Threshold | 9 audio levels |
Audio Pitch | Low, High |
Transmission & Technology | Pulse Induction (PI) and Multi Period Fast (MPF) |
Warranty | 3 years control box & coil |
Included Accessories | Armrest Cover, Coil Joint Protector |
Optional Accessories | Koss Waterproof Headphones, Pro-Sonic Wireless Audio, Carry Bag |

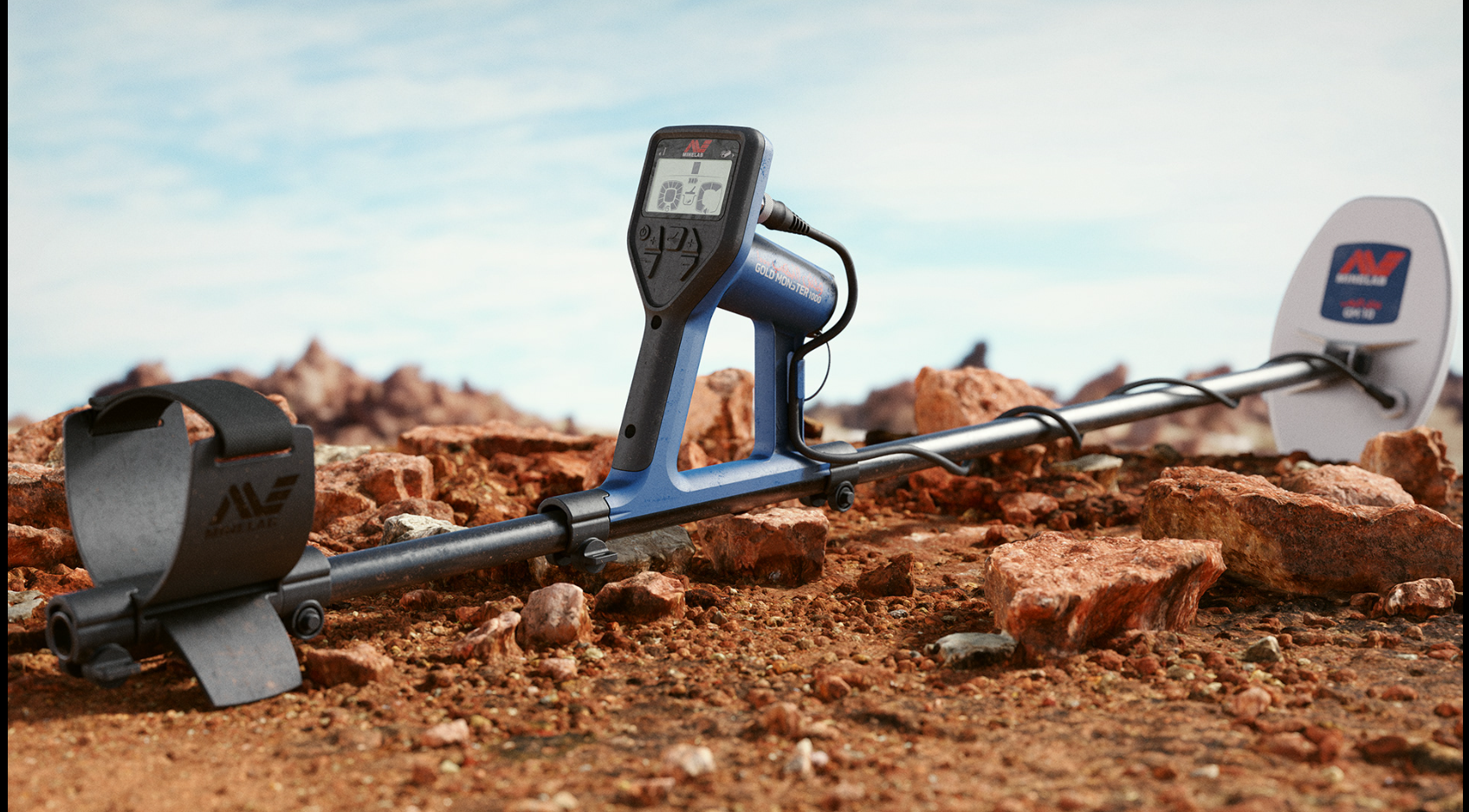

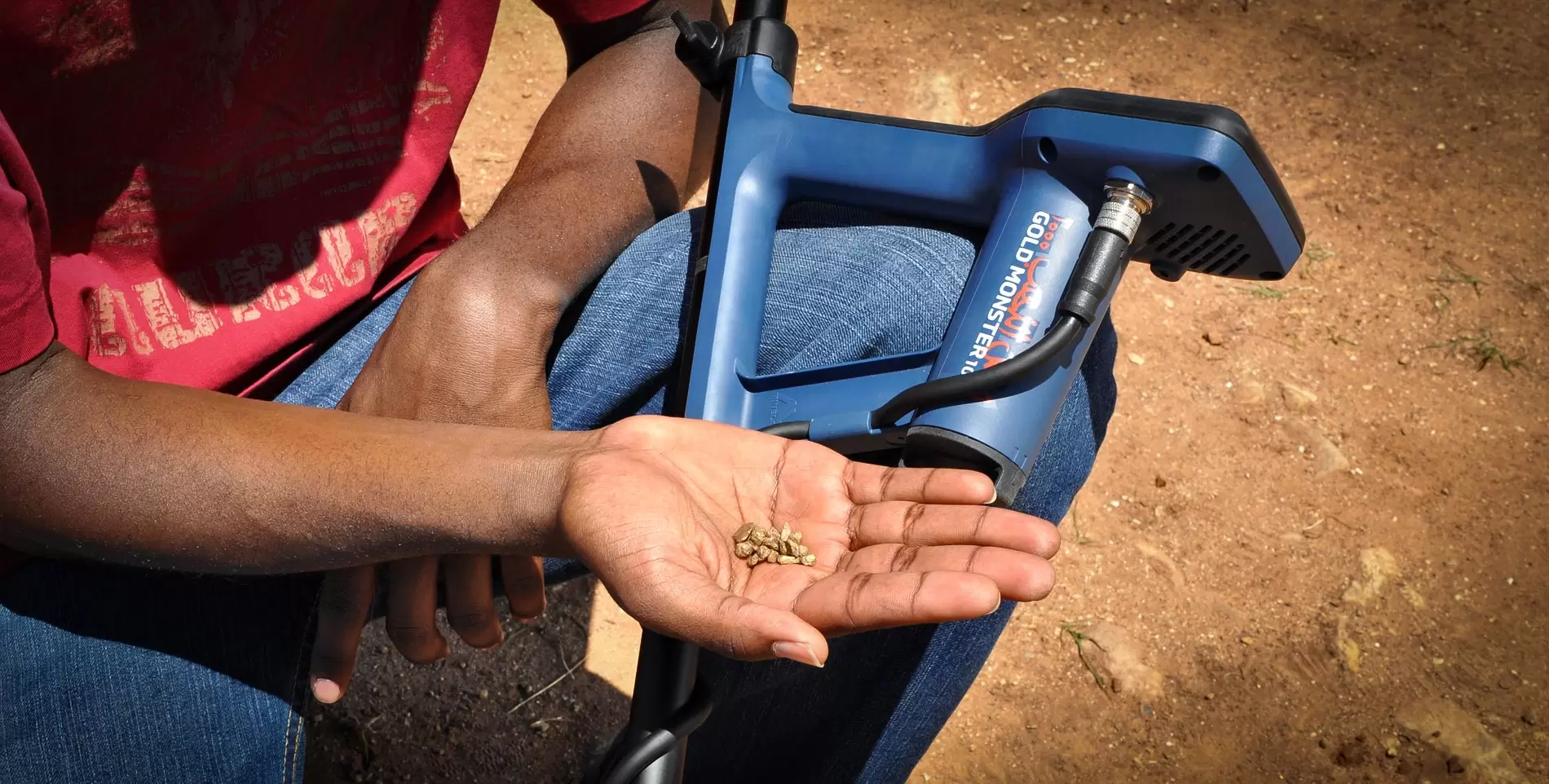

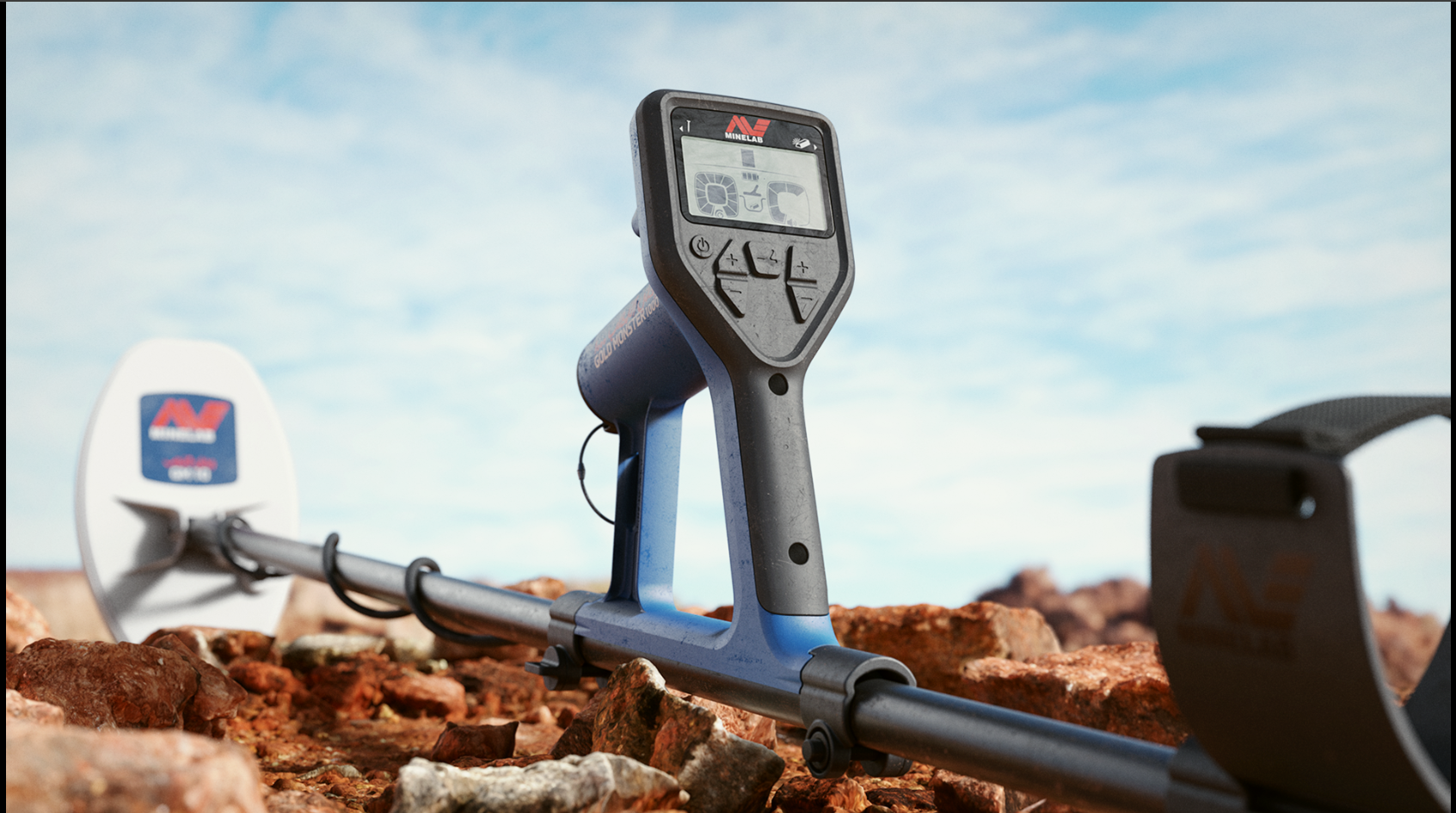

Gold Monster 1000
Highlights:
Key Technology | Ultra-wide dynamic range 45kHz VLF |
Detect Modes | Gold (Iron reject), Deep All-Metal |
Discrimination | Gold Chance Indicator (high/low) |
Ground Balance | Automatic (Easy-Trak) |
Noise Cancel | Automatic (On start-up) |
Sensitivity Adjust | Manual (1–10), Auto (11), Auto+ (12) |
Volume Adjust | Manual 1–6 |
Visual Display | Monochrome LCD |
Detector Length | 1382mm–944mm (54.4″–37.2″) |
Detector Weight (with10″ × 6″ coil) | 1.33kg (2.94lbs) (excluding battery) |
Audio Output | Internal speaker or headphones 3.5mm (1/8″) |
Standard Coil | GM 05 (5″ Double‑D) |
Waterproof/Splashproof | Coils waterproof to 1m (3′), Control box rain/splash-proof |
Battery options | Li-Ion (included), 8 × AA Batteries (not included) |
Warranty | 2 years control box & coil |
Accessory coil | GM 10 (10″ x 6″ Double-D) |

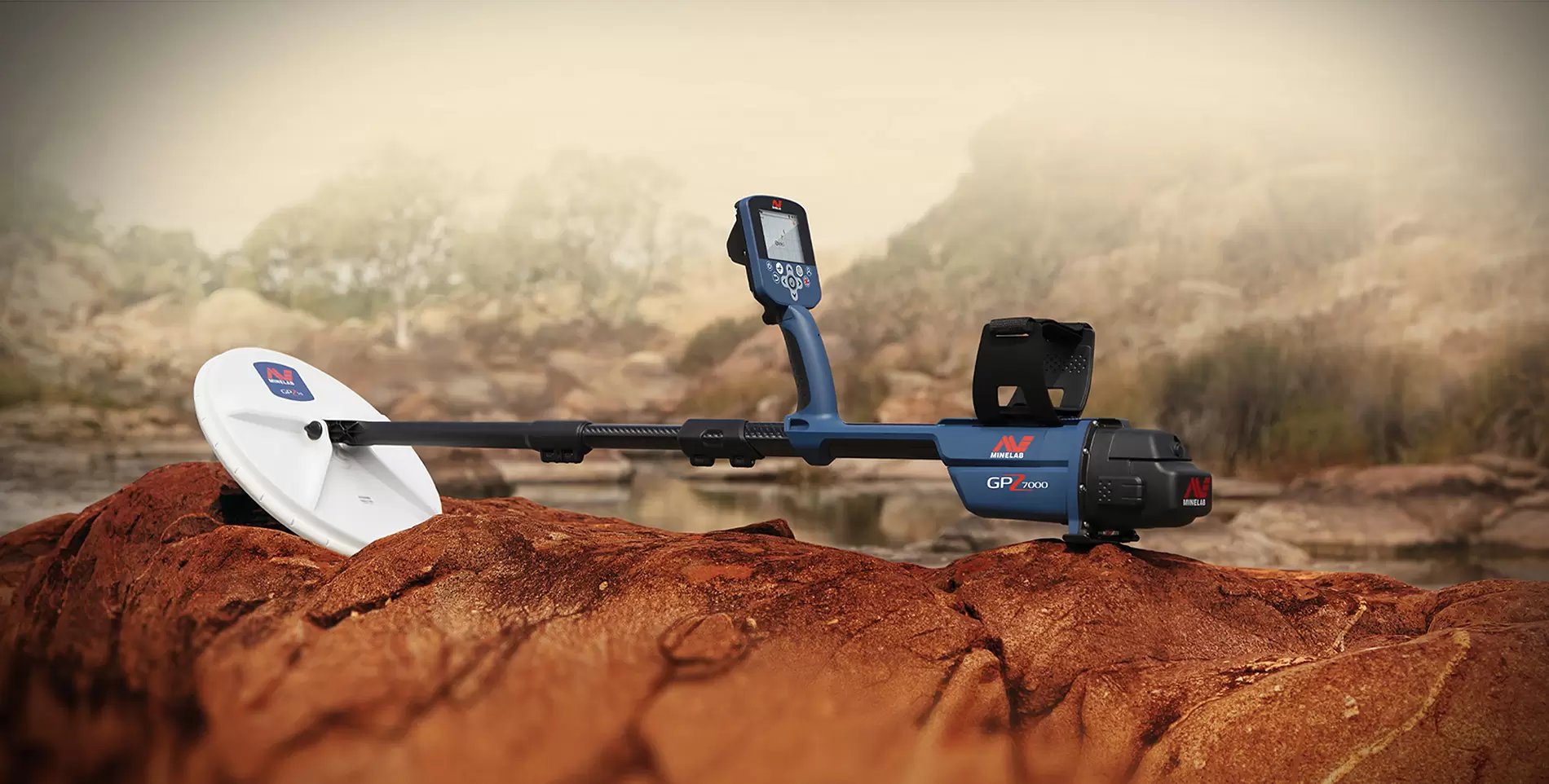

GPZ 7000
Highlights:
Application | Gold Prospecting (Waterproof coil to 1m/3ft) |
Technology | ZVT |
Frequency/Transmission | Zero Voltage Transmission (ZVT) |
Coil (standard) | 14″ x 13″ Super‑D Configuration with skidplate (waterproof to 1 m/3 ft) |
Audio Output | 6.3 mm (¼”) non waterproof socket, Wi‑Stream wireless signal transmission |
Headphones Supplied | KOSS UR 30 100 ohm with 6.3 mm plug (¼-inch) (non waterproof) |
Visual Display | Full colour LCD (320 x 240 pixels) |
Backlight | Yes |
Product ID | 252529 |
USB Connectivity | USB interface for XChange 2 PC software |
Memory | Yes |
Depth Indication | – |
Detect Modes | Gold Mode (High Yield, General, Extra Deep) Ground Type (Normal, Difficult, Severe) |
Discrimination | All Metal |
Timings | – |
Audio tone | 1-100 |
Audio Type | – |
Ground Balance | Auto and Manual (Quick‑Trak trigger button) |
Ground Balance Type | Auto and Manual (Quick‑Trak trigger button) |
Trash Density | – |
Pinpoint | – |
Sensitivity Adjust | Level (1-20) |
Tune / Noise Cancel | Auto and Manual (256 channels) |
Threshold | Level (1-50) Pitch (1-100) |
Target Volume Adjust | Range (1-20) Limit (1-20) |
Battery | Li-Ion Rechargeable Pack (7.2V DC, 72Wh) |
Low battery alert | Yes |
Length | Collapsed: 1170 mm (46.1”) Laid flat, packed position: 1304 mm (51.3”) Extended: 1526 mm (60.1”) Laid flat, packed position: 1651 mm (65.0”) |
Weight | 3.32 kg (7.32 lb) (Including GPZ 14 coil, skidplate and 72Wh battery) |
GARRETT AT GOLD
Highlights:
Z-Lynk™ Wireless Technology | No |
---|---|
Backlight | No |
Iron Discrimination Segments | 44 |
True All-Metal Mode | ✔ |
Volume Adjustment | No |
Notch Discrimination | Preset (fixed) |
Search Modes | 3, all Pro Audio |
Proportional Audio | ✔ |
Standard Binary Audio | No |
Fast Recovery Speed | ✔ |
Sensitivity/ Depth Adjustments | 8 |
Iron Audio™ (Disc. Modes) | ✔ |
Iron Audio™ (All Metal Mode) | ✔ |
Threshold Adjustment | ✔ |
Digital Target ID | ✔ |
Ground Balance, Auto/Manual | ✔ |
Ground Balance Window™ | ✔ |
Pinpoint | ✔ |
Waterproof | ✔ (to 10 feet / 3m) |
Freshwater use | ✔ |
Saltwater use | not recommended |
Frequency | 18 kHz, adjustable |
Audio Tone ID Levels | 3 |
Target Depth Indicator | ✔ |
Standard Searchcoil | 5” x 8” DD PROformance™ |
Length (Adjustable) | 43″ to 56″ (1.09m – 1.4m) |
Power | 4 AA (included) |
Battery Condition Indicator | ✔ |
Warranty | 3 Year, Limited Parts/Labor |
Total Weight | 2.8 lbs (1.27 kgs) |
GPX 6000
Highlights:
Search Modes | Difficult (default) | Normal |
Double-D Modes | EMI Cancel (default) | Conductive Ground Cancel |
Ground Balance | Auto | Manual (Quick-Trak) |
Noise Cancel | Automatic (on start-up) | Manual (as needed – 5s duration) |
Sensitivity | Manual (levels 1 — 10) | Auto (level 11) | Auto+ (Level 12) |
Threshold Tone | On, Off |
Volume | 5 Levels |
Length | Extended: 155 cm (61 in) | Collapsed: 67 cm (26.5 in) |
Weight | 2.1 kg (4.6 lb) (with 11″ round Monoloop coil) |
Display | Monochrome LCD with backlight |
Available coils | GPX 11™ 11″ round Monoloop | GPX 14™ 14″ round Double-D | GPX 17™ 17″x13″ elliptical Monoloop |
Audio Output | Built-in loudspeaker | Wired 3.5 mm (1/8″ headphones) | Bluetooth wireless audio (aptX™ Low Latency) |
Supplied Headphones | ML 100 wireless headphones |
Supplied Batteries | Rechargeable Lithium-Ion battery 5833 mAh |
Battery Runtime | 8 hours (approximately) |
Waterproof | Coils: submersible to 1m (3.3 ft) | Detector: splash / rain proof |
Operating Frequency | 1.225 kHz |
Operating Temperature Range | -10°C to +50°C (+14°F to +122°F) |
Storage Temperature Range | -20°C to 70°C (-4°F to 158°F) |
Key Technologies | GeoSense-PI™ | Bluetooth | aptX™ Low Latency |
Treasure and Metal Detectors
Garrett Euro Ace
Highlights:
Waterproof | No |
Submersible | No |
Weight | 1,2 kg. |
Adjustable Shaft | Yes |
Minimum Assembled Length | 106 cm. |
Maximum Assembled Length | 129 cm. |
Rechargeable System | Not included |
Battery | 4 x AA |
Headphone Jack | 1/4″ |
Arm Rest | Fixed |
Arm Rest Strap | Included |
Control Box Mount | Fixed |
Number of Frequencies | 1 |
Frequencies | 8.25 kHz |
Warranty | 3 years |
Instruction Manual | In Italian |
Video Instructions | In English |
Coil Dimensions | 8.5 x 11″ |
Coil Shape | Elliptical |
Coil Type | Open |
Coil Technology | DD |
Coil Interchangeable | Yes |
Waterproof Coil | Yes |
Sub Coil | Yes |
Optional Coils | Available |
Display Type | LCD |
Search Mode Number | 6 |
Search Mode Type | Jewelry, Custom, Relics, Coins, Zero, Pinpoint |
Technology | VLF Single Frequency |
Discrimination | Adjustable |
Threshold | N/D |
Sensitivity | Adjustable |
Ground Balance (Fixed) | Yes |
Ground Balance (Manual) | No |
Ground Balance (Automatic) | No |
Target Identification (ID) | Yes |
Programmable Target Id | Yes |
Number of Segments Target Id | 12 |
Depth Indication | Yes |
Pinpoint | Yes |
Volume Control | No |
Audio Tones | Yes |
Number Audio Tones | 3 |
Low Battery Warning | Yes |
Exclusive Features | One touch treasure hunting, Enhanced Iron resolution, Garrett’s Exclusive blunted tip and tail DD coil design (further extends coil’s total scan area for improved searching) |
Type of Use | Multipurpose |
Garrett ACE 250
Highlights:
Overview | A worldwide best seller, the Garrett ACE 250 is ideal for finding coins, jewelry, and relics for users of all ages and experience levels. |
Iron Audio | NO |
Iron Discrimination Segments | 2 |
Notch Discrimination | Adjustable |
Search Modes | 5 (Plus Pinpoint) |
Sensitivity/ Depth Adjustments | 8 |
Digital Target ID | NO |
Pinpoint | ✔ |
Frequency | 6.5 kHz |
Audio Tone ID Levels | 3 |
Target Depth Indicator | ✔ |
Standard Searchcoil | 6.5″ x 9″ concentric PROformance |
Length (Adjustable) | 42″ to 51″ (1.06m – 1.29m) |
Power | 4 AA (included) |
Battery Condition Indicator | ✔ |
Warranty | 3 Year, Limited Parts/Labor |
One-Touch Treasure Hunting | ✔ |
Camlocks for more stem stability | NO |
Headphones Included | NO |
What Else is in the Box? | Owner’s manual |
Total Weight | 2.7 lbs. (1.2 kgs.) |
Garret Ace 150
Highlights:
- Light weight with large LCD screen
- Three Search Modes
- One-Touch Operation
- 6.5″ x 9″ submersible concentric search coil
- Easy to read Target ID legend
- Coin depth indicator
- 1/4″ headphone jack
Garrett AT Pro
Highlights:
Z-Lynk™ Wireless Technology | No |
Backlight | No |
Iron Discrimination Segments | 40 |
True All-Metal Mode | No |
Volume Adjustment | No |
Notch Discrimination | Adjustable |
Search Modes | 6 (3 Standard, 3 Pro) |
Proportional Audio | ✔ |
Standard Binary Audio | ✔ |
Fast Recovery Speed | ✔ |
Sensitivity/ Depth Adjustments | 8 |
Iron Audio™ (Disc. Modes) | ✔ |
Iron Audio™ (All Metal Mode) | No |
Threshold Adjustment | No |
Digital Target ID | ✔ |
Ground Balance, Auto/Manual | ✔ |
Ground Balance Window™ | No |
Pinpoint | ✔ |
Waterproof | ✔ (to 10 feet / 3m) |
Freshwater use | ✔ |
Saltwater use | ✔ |
Frequency | 15 kHz, adjustable |
Audio Tone ID Levels | 3 |
Target Depth Indicator | ✔ |
Standard Searchcoil | 8.5” x 11” DD PROformance™ |
Length (Adjustable) | 43″ to 56″ (1.09m – 1.4m) |
Power | 4 AA (included) |
Battery Condition Indicator | ✔ |
Warranty | 3 Years |
Total Weight | 3.03 lbs (1.4 kgs) |
Equinox 800
Highlights:
Feature | Details |
---|---|
Detect Modes | Park | Beach | Field | Gold |
Custom Search Profiles | 8 (2 per Detect Mode) |
User Profile Button | Yes |
Operating Frequencies (kHz) | Multi, 5, 10, 15, 20, 40 |
Noise Cancel | Auto | Manual (-9 to 9) |
Ground Balance | Auto | Manual |
Sensitivity | 1–25 |
Target Volume | 0–25 |
Threshold Level | 0–25 |
Threshold Pitch | 0–25 |
Target Identification (TID) | 50 ID’s | Ferrous: -9 to 0 | Non-ferrous: 1 to 40 |
Target Tones | 1, 2, 5, 50 |
Tone Break | Ferrous | Non-ferrous |
Tone Pitch | Ferrous | Non-ferrous |
Tone Volume | Ferrous | Non-ferrous |
Depth Indicator | 5 levels |
Length | 1440 mm (56.7″) |
Weight | 1.34 kg (2.96 lbs) |
Standard Coil | 11-inch Double-D Smart coil with skidplate (waterproof to 3m/10′) |
Audio Output | • In-built loudspeaker • 3.5mm (1/8″) headphones (included) • Bluetooth compatible • WM 08 Wi-Stream compatible |
Headphones (included) | Bluetooth and aptX™ Low Latency headphones (non-waterproof) |
WM 08 (included) | Yes |
Display | Monochrome LCD with backlight |
LCD Backlight | Low | Medium | High | Off |
Battery | In-built rechargeable Lithium-ion battery |
Battery Runtime | Approx. 12 hours |
Waterproof | Waterproof to 3m/10-feet |
Key Technologies | Multi-IQ | 5F×8 | Wi-Stream | Bluetooth | aptX™ Low Latency |
Other Accessories | USB Charging cable (1.5A), Multi Language Screen protectors |
Software Upgradeable | Yes, via USB connection (Windows and OSX) |
Warranty | 3 years control box and coil |
Discrimination Segments | 50 |
CTX 3030
Highlights:
Feature | Details |
---|---|
Application | Coin, Relic, Jewellery & Beach (waterproof 10ft) |
Technology | FBS 2, Smartfind 2, GPSi, Wi-Stream |
Frequency/Transmission | Multiple frequencies: 1.5 – 100kHz |
Coil (standard) | 11-inch waterproof Double-D smart coil |
Audio Output | Built-in speaker, standard ¼-inch non-waterproof socket, custom waterproof socket (Minelab accessory headphones only) |
Headphones Supplied | KOSS UR30 (100 ohm) supplied with detector (non-waterproof) |
Visual Display | Full colour LCD with backlight and adjustable brightness (1–10) |
Backlight | Yes |
Product ID | 88961 |
USB Connectivity | USB interface for XChange 2 PC software |
Memory | Settings saved automatically while detecting and remain until changed or reset |
Depth Indication | Accurate gauge active in normal detecting and Pinpoint mode |
Detect Modes | 10 fully customisable, including 5 preset (Coins, Beach, Relic, Silver & High Trash) |
Discrimination | Smartfind 2TM 2 dimensional colour discrimination: Ferrous 35, Conductivity 50 – 20 fully customisable discrimination patterns (2 per Search Mode) |
Timings | – |
Audio Tone | Customisable Tone ID Profiles – 1, 2 ferrous (Fe), 2 conductive (Co), 4 Fe, 4 Co, 35 Fe, 50 Co or Combined |
Audio Type | Normal, Long, Smooth & Pitch Hold |
Ground Balance | Auto Compensation and Auto Ground Balance |
Ground Balance Type | – |
Trash Density | – |
Pinpoint | Non-motion with modulated audio and visual crosshair on LCD, 2 modes: normal and sizing |
Sensitivity Adjust | Auto and Manual (1–30) |
Tune / Noise Cancel | Manual & Automatic (11 channels) |
Threshold | Level adjustment (1–50), Pitch adjustment (1–30) |
Target Volume Adjust | Limit & Gain (1 to 30) |
Battery | Li-ion pack with fast charger. 12 V car adapter supplied with Standard Pack only |
Low Battery Alert | Audio & visual indication |
Length | Min 37 in. (940 mm) – Max 55.3 in. (1405 mm) |
Weight | 5.20 lbs (2.36 kgs) including Li-ion battery pack |
Warranty | 3 years control box & coil |
Go Find 44
Highlights:
Portability | Collapsible Body |
Find Modes | 3 |
Search Coil | Large (10-inch waterproof coil) |
Treasure View | 5 LEDs |
Backlight | Yes |
Sensitivity | 4 Levels |
Volume | 5 Volume Levels |
Pinpoint Locating | Yes |
Bluetooth | Yes |
Smartphone App | Standard Version |
Batteries | 4xAA Batteries (not inc.) |
Length Collapsed | 21.9 in / 555 mm |
Length Extended | 51.4 in / 1305 mm |
Weight | 2.3 lbs / 1.06 kg |
Go Find 66
Highlights:
Portability | Collapsible Body |
Find Modes | 4 |
Search Coil | Large (10-inch waterproof coil) |
Treasure View | 5 LEDs |
Backlight | Yes |
Sensitivity | 5 Levels |
Volume | 5 Volume Levels |
Pinpoint Locating | Yes |
Bluetooth | Yes |
Smartphone App | Pro Version |
Digging Tool | Yes |
Earbuds | Yes |
Batteries | 4xAA Batteries (not inc.) |
Length Collapsed | 21.9 in / 555 mm |
Length Extended | 51.4 in / 1305 mm |
Weight | 2.3 lbs / 1.06 kg |
Gold Detector Accessories
Gold Monster 1000 5″ Skidplate
Highlights:
5″ Skidplate
For GOLD MONSTER 1000.
GPX 4500 Mining Pro Battery
Highlights:
GPX 4500 Mining Pro Battery
Minelab 18″ Double-D Commander Coil
Highlights:
