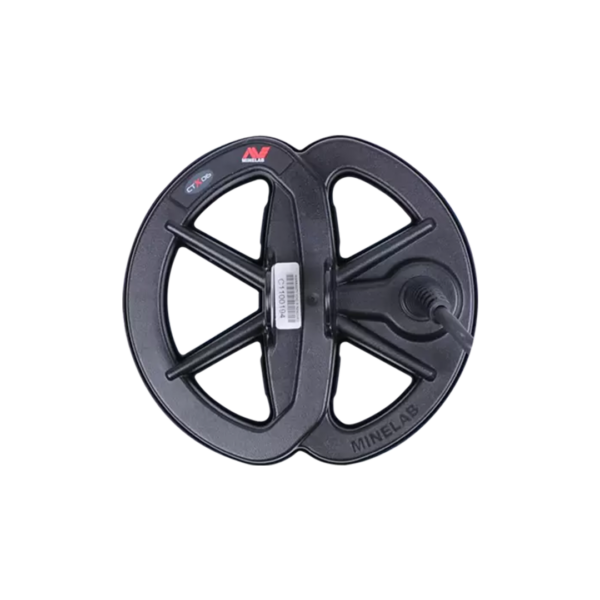

The waterproof 6-inch round Double-D coil is very sensitive to small targets, and perfect for finding treasure in high trash areas. It is also ideal for maneuvering in difficult terrain. A protective skidplate is included.
CTX 06 Smart Coil
For CTX 3030.
You may also like…
CTX 3030
| Feature | Details |
|---|---|
| Application | Coin, Relic, Jewellery & Beach (waterproof 10ft) |
| Technology | FBS 2, Smartfind 2, GPSi, Wi-Stream |
| Frequency/Transmission | Multiple frequencies: 1.5 – 100kHz |
| Coil (standard) | 11-inch waterproof Double-D smart coil |
| Audio Output | Built-in speaker, standard ¼-inch non-waterproof socket, custom waterproof socket (Minelab accessory headphones only) |
| Headphones Supplied | KOSS UR30 (100 ohm) supplied with detector (non-waterproof) |
| Visual Display | Full colour LCD with backlight and adjustable brightness (1–10) |
| Backlight | Yes |
| Product ID | 88961 |
| USB Connectivity | USB interface for XChange 2 PC software |
| Memory | Settings saved automatically while detecting and remain until changed or reset |
| Depth Indication | Accurate gauge active in normal detecting and Pinpoint mode |
| Detect Modes | 10 fully customisable, including 5 preset (Coins, Beach, Relic, Silver & High Trash) |
| Discrimination | Smartfind 2TM 2 dimensional colour discrimination: Ferrous 35, Conductivity 50 – 20 fully customisable discrimination patterns (2 per Search Mode) |
| Timings | – |
| Audio Tone | Customisable Tone ID Profiles – 1, 2 ferrous (Fe), 2 conductive (Co), 4 Fe, 4 Co, 35 Fe, 50 Co or Combined |
| Audio Type | Normal, Long, Smooth & Pitch Hold |
| Ground Balance | Auto Compensation and Auto Ground Balance |
| Ground Balance Type | – |
| Trash Density | – |
| Pinpoint | Non-motion with modulated audio and visual crosshair on LCD, 2 modes: normal and sizing |
| Sensitivity Adjust | Auto and Manual (1–30) |
| Tune / Noise Cancel | Manual & Automatic (11 channels) |
| Threshold | Level adjustment (1–50), Pitch adjustment (1–30) |
| Target Volume Adjust | Limit & Gain (1 to 30) |
| Battery | Li-ion pack with fast charger. 12 V car adapter supplied with Standard Pack only |
| Low Battery Alert | Audio & visual indication |
| Length | Min 37 in. (940 mm) – Max 55.3 in. (1405 mm) |
| Weight | 5.20 lbs (2.36 kgs) including Li-ion battery pack |
| Warranty | 3 years control box & coil |
