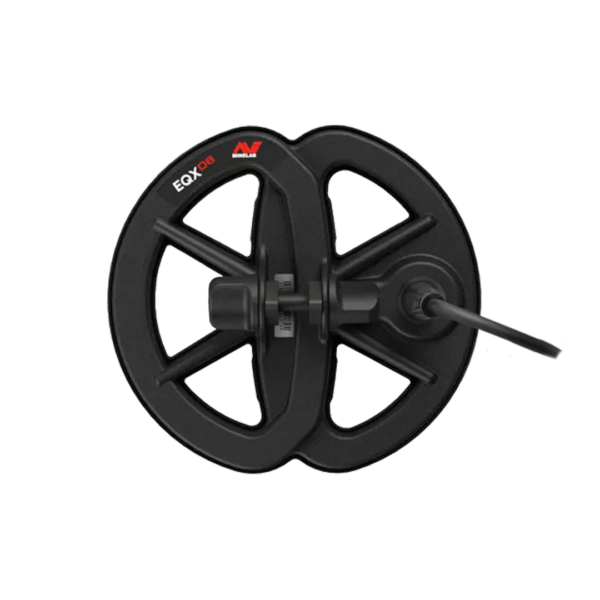

The waterproof 6-inch round Double-D coil is very sensitive to small targets, and perfect for finding treasure in high trash areas. It is also ideal for detecting in difficult terrain. The EQX 06 coil weighs 300g with the included protective skidplate, bringing total weight of the EQUINOX detector to 1.13kg with the EQX 06 attached.
EQX 06 Double-D Smart Coil
For EQUINOX Series and X-TERRA PRO Detectors.
You may also like…
X-Terra Pro
Search Modes | Park, Field, Beach |
All-Metal Shortcut | Yes |
Custom Search Profiles | 6 |
Operating Frequencies (kHz) | Park and Field: 5, 10, 15 | Beach: 8 |
Noise Cancel | Auto (19 Channels) |
Ground Balance | Auto, Manual, Tracking |
Sensitivity | 1 to 25 |
Target Volume | 0 to 25 |
Threshold Level | 0 to 25 |
Threshold Pitch | Fixed |
Target Identification (TID) | 119 ID’s | Ferrous: -19 to 0 | Non-ferrous: 1 to 99 |
Target Tones | 1, 2, 5, All Tones (At), Depth (dP) |
Tone Break | Ferrous (FE) |
Tone Volume | Tone 1 adjustable: 0 to 25 |
Recovery Speed | 1 to 3 |
Depth Indicator | 5 Levels |
Discrimination Segments | 30 (4 Target ID’s per segment) |
Pinpoint Mode | Yes |
Wireless Audio | Yes |
Length (approx.) | Collapsed: 63 cm (25 in) | Extended: 138 cm (54 in) |
Weight (including batteries) | 1.3 kg (2.9 lbs) |
Display | Monochrome LCD |
Display and Keypad Backlight (red) | Off, High, Low |
Flashlight | On, Off |
Vibration (Master and Ferrous) | On, Off |
Supplied Coil | V12X 12″ Double-D Elliptical coil with skid plate |
Audio Output | In-built loudspeaker, Wired 3.5 mm (1/8″) headphones, Wireless headphones |
Battery | 3.7V/5100 mAh Internal Lithium-ion battery |
Additional Included Accessories | Getting Started Guide, Charging Cable |
Waterproof | 5m (16 ft) IP68 |
Operating Temperature Range | -10 to +40 degrees Celsius (+14 to +104 Fahrenheit) |
Storage Temperature Range | -20 to +70 degrees Celsius (-40 to +158 Fahrenheit) |
Key Technologies | Pro-Switchâ„¢ |
Warranty | 3 Years control box and coil |
Equinox 900
Search Modes | Park, Field, Beach, Gold |
All-Metal Shortcut | Yes |
Custom Search Profiles | 8 (2 per detect mode) |
User Profile Button | Yes |
Operating Frequencies (kHz) | Multi, 4, 5, 10, 15, 20, 40 |
Noise Cancel | Auto (19 Channels), Manual |
Ground Balance | Auto, Manual, Tracking |
Sensitivity | 1 to 28 |
Target Volume | 0 to 25 |
Threshold Level | 0 to 25 |
Threshold Pitch | 0 to 25 |
Target Identification (TID) | 119 IDs | Ferrous: -19 to 0 | Non-ferrous: 1 to 99 |
Target Tones | 1, 2, 5, All Tones (At), Depth (dP) |
Tone Break | Ferrous, Non-ferrous (t1, t2, t3, t4) |
Tone Pitch | All tones adjustable: 0 to 25 |
Tone Volume | All tones adjustable: 0 to 25 |
Recovery Speed | 1 to 8 |
Iron Bias | 0 to 9 |
Depth Indicator | 5 levels |
Discrimination Segments | 119 |
Pinpoint Mode | Yes |
Wireless Audio | Yes |
Length (approx.) | Collapsed: 61 cm (24 in) – Extended: 144 cm (56.7 in) |
Weight | 1.27 kg (2.8 lbs) |
Display | Monochrome LCD |
Display and Keypad Backlight (red) | Off, High, Medium, Low |
Flashlight | On, Off |
Vibration | On, Off per Tone Region |
Supplied Coil | EQX11 11″ Double-D coil with skid plate, EQX06 6″ Coil with skid plate |
Audio Output | In-built loudspeaker, Wired 3.5 mm (1/8″) headphones, Wireless headphones |
Supplied Headphones | Minelab ML 85 Low Latency wireless headphones |
Battery | 3.7V/5100 mAh Internal Lithium-lon battery |
Additional Included Accessories | Getting Started Guide, Screen Protector (English), Charging Cable |
Waterproof | 5m (16 ft) IP68 |
Operating Temperature Range | -10 to +40 degrees Celsius (+14 to +104 degrees Fahrenheit) |
Storage Temperature Range | -20 to +70 degrees Celsius (-40 to +158 degrees Fahrenheit) |
Key Technologies | Multi-IQ |
Equinox 700
Feature | Details |
---|---|
Detect Modes | Park | Beach | Field | Gold |
Custom Search Profiles | 8 (2 per Detect Mode) |
User Profile Button | Yes |
Operating Frequencies (kHz) | Multi, 5, 10, 15, 20, 40 |
Noise Cancel | Auto | Manual (-9 to 9) |
Ground Balance | Auto | Manual |
Sensitivity | 1–25 |
Target Volume | 0–25 |
Threshold Level | 0–25 |
Threshold Pitch | 0–25 |
Target Identification (TID) | 50 ID’s | Ferrous: -9 to 0 | Non-ferrous: 1 to 40 |
Target Tones | 1, 2, 5, 50 |
Tone Break | Ferrous | Non-ferrous |
Tone Pitch | Ferrous | Non-ferrous |
Tone Volume | Ferrous | Non-ferrous |
Depth Indicator | 5 levels |
Length | 1440 mm (56.7″) |
Weight | 1.34 kg (2.96 lbs) |
Standard Coil | 11-inch Double-D Smart coil with skidplate (waterproof to 3m/10′) |
Audio Output | • In-built loudspeaker • 3.5mm (1/8″) headphones (included) • Bluetooth compatible • WM 08 Wi-Stream compatible |
Headphones (included) | Bluetooth and aptXâ„¢ Low Latency headphones (non-waterproof) |
WM 08 (included) | Yes |
Display | Monochrome LCD with backlight |
LCD Backlight | Low | Medium | High | Off |
Battery | In-built rechargeable Lithium-ion battery |
Battery Runtime | Approx. 12 hours |
Waterproof | Waterproof to 3m/10-feet |
Key Technologies | Multi-IQ | 5F×8 | Wi-Stream | Bluetooth | aptX™ Low Latency |
Other Accessories | USB Charging cable (1.5A), Multi Language Screen protectors |
Software Upgradeable | Yes, via USB connection (Windows and OSX) |
Warranty | 3 years control box and coil |
Discrimination Segments | 50 |
Equinox 800
Feature | Details |
---|---|
Detect Modes | Park | Beach | Field | Gold |
Custom Search Profiles | 8 (2 per Detect Mode) |
User Profile Button | Yes |
Operating Frequencies (kHz) | Multi, 5, 10, 15, 20, 40 |
Noise Cancel | Auto | Manual (-9 to 9) |
Ground Balance | Auto | Manual |
Sensitivity | 1–25 |
Target Volume | 0–25 |
Threshold Level | 0–25 |
Threshold Pitch | 0–25 |
Target Identification (TID) | 50 ID’s | Ferrous: -9 to 0 | Non-ferrous: 1 to 40 |
Target Tones | 1, 2, 5, 50 |
Tone Break | Ferrous | Non-ferrous |
Tone Pitch | Ferrous | Non-ferrous |
Tone Volume | Ferrous | Non-ferrous |
Depth Indicator | 5 levels |
Length | 1440 mm (56.7″) |
Weight | 1.34 kg (2.96 lbs) |
Standard Coil | 11-inch Double-D Smart coil with skidplate (waterproof to 3m/10′) |
Audio Output | • In-built loudspeaker • 3.5mm (1/8″) headphones (included) • Bluetooth compatible • WM 08 Wi-Stream compatible |
Headphones (included) | Bluetooth and aptXâ„¢ Low Latency headphones (non-waterproof) |
WM 08 (included) | Yes |
Display | Monochrome LCD with backlight |
LCD Backlight | Low | Medium | High | Off |
Battery | In-built rechargeable Lithium-ion battery |
Battery Runtime | Approx. 12 hours |
Waterproof | Waterproof to 3m/10-feet |
Key Technologies | Multi-IQ | 5F×8 | Wi-Stream | Bluetooth | aptX™ Low Latency |
Other Accessories | USB Charging cable (1.5A), Multi Language Screen protectors |
Software Upgradeable | Yes, via USB connection (Windows and OSX) |
Warranty | 3 years control box and coil |
Discrimination Segments | 50 |
