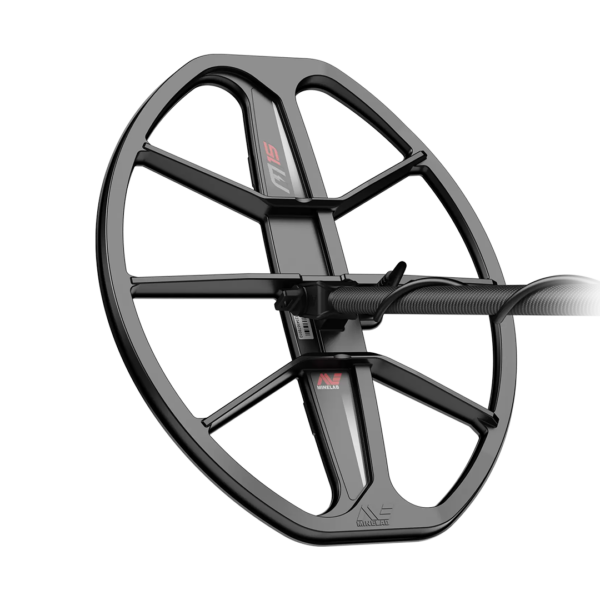

The 15 x 12-inch elliptical Double-D M15Â coil is waterproof to 5 m (16 ft) and provides maximum depth for specialised treasure hunting. It is also great for wide ground coverage in open spaces. The M15 coil weighs 650g with the included protective skidplate, bringing total weight of the MANTICORE detector to 1.45kg with the M15 attached.
Manticore M15 Coil 15″x12″ Elliptical Double-D
For the Minelab MANTICORE
You may also like…
Manticore
Detect Modes (Customisable) | All-Terrain (5), Beach (4), Goldfield (1) |
Operating Frequencies | Multi-IQ+, 5 kHz, 10 kHz, 15 kHz, 20 kHz, 40 kHz |
Noise Cancel | Auto, Continuous Auto, Manual (-9 to +9) |
Ground Balance | Auto, Manual, Tracking |
Sensitivity | 1 to 35 |
Target Identification | Conductive: 0-99 with ferrous indication |
2D ID Map | Two-Dimensional ID Map System with Target Trace |
Target Tones | 1, 2, 5 – Tone | 1, 2, 5 – Region All Tones |
Target Volume | 0 to 25 |
Target Pitch | 1 to 50 |
Ferrous Volume | 0 to 25 |
Ferrous Pitch | 1 to 50 |
Audio Themes | Normal, Enhanced, Depth, Prospecting |
Volume Profiles | Simple, Medium, Rich |
Threshold Level | 0 to 25 |
Threshold Pitch | 1 to 50 |
Recovery Speed | 0 to 8 |
Ferrous Limits | Upper: 0 to 14 | Lower: 0 to 9 |
Ferrous Limits Custom | 1 to 4 |
Shortcuts | Soft Keys: 2 (Action Bar), 1 (User Button) |
Depth Indicator | 5 levels |
Shaft System | 3-piece highly collapsible carbon-fibre |
Extended Length | 1440 mm / 56.7 inch |
Collapsed Length | 630 mm / 24.8 inch |
Weight | 1.3 kg / 2.9 lb |
Standard Coil (M11) | 11-inch round Double-D coil with skidplate (waterproof to 5 m / 16 ft) |
Audio Output | Speaker | 3.5 mm (1/8″) headphones | Wireless low latency headphones |
Headphones (Included) | Minelab ML-105 wireless low latency headphones (non waterproof) |
Display | Colour LCD |
Display Backlight | Manual (1 to 10), Auto Adjust |
Keypad Backlight | On, Off |
Flashlight | Low, Medium, High, Off |
Handgrip Vibration | On, Off |
Battery | Internal rechargeable Lithium-ion battery |
Battery Run Time | Approx. 10 hours |
Battery Charge Time | Approx. 7 hours |
Waterproof | Waterproof to 5 m / 16 ft, IP68 |
Key Technologies | Multi-IQ+ (High Power Simultaneous Multi-Frequency) |
Included Accessories | USB Charging Cable, 5x Screen Protectors, 3.5 mm Headphone Audio Cable, Headphone Case |
Software Upgradable | Yes, via USB connection (Windows or Mac OS compatible) |
