Fully waterproof to 5 m (16 ft) IP68

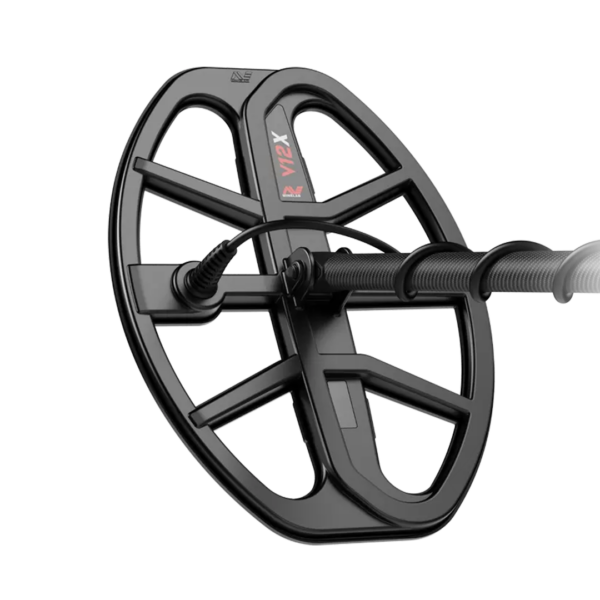

X-Terra Pro V12X Double-D Coil
For Minelab X-TERRA PRO detectors
You may also like…
X-Terra Pro
Search Modes | Park, Field, Beach |
All-Metal Shortcut | Yes |
Custom Search Profiles | 6 |
Operating Frequencies (kHz) | Park and Field: 5, 10, 15 | Beach: 8 |
Noise Cancel | Auto (19 Channels) |
Ground Balance | Auto, Manual, Tracking |
Sensitivity | 1 to 25 |
Target Volume | 0 to 25 |
Threshold Level | 0 to 25 |
Threshold Pitch | Fixed |
Target Identification (TID) | 119 ID’s | Ferrous: -19 to 0 | Non-ferrous: 1 to 99 |
Target Tones | 1, 2, 5, All Tones (At), Depth (dP) |
Tone Break | Ferrous (FE) |
Tone Volume | Tone 1 adjustable: 0 to 25 |
Recovery Speed | 1 to 3 |
Depth Indicator | 5 Levels |
Discrimination Segments | 30 (4 Target ID’s per segment) |
Pinpoint Mode | Yes |
Wireless Audio | Yes |
Length (approx.) | Collapsed: 63 cm (25 in) | Extended: 138 cm (54 in) |
Weight (including batteries) | 1.3 kg (2.9 lbs) |
Display | Monochrome LCD |
Display and Keypad Backlight (red) | Off, High, Low |
Flashlight | On, Off |
Vibration (Master and Ferrous) | On, Off |
Supplied Coil | V12X 12″ Double-D Elliptical coil with skid plate |
Audio Output | In-built loudspeaker, Wired 3.5 mm (1/8″) headphones, Wireless headphones |
Battery | 3.7V/5100 mAh Internal Lithium-ion battery |
Additional Included Accessories | Getting Started Guide, Charging Cable |
Waterproof | 5m (16 ft) IP68 |
Operating Temperature Range | -10 to +40 degrees Celsius (+14 to +104 Fahrenheit) |
Storage Temperature Range | -20 to +70 degrees Celsius (-40 to +158 Fahrenheit) |
Key Technologies | Pro-Switch™ |
Warranty | 3 Years control box and coil |
