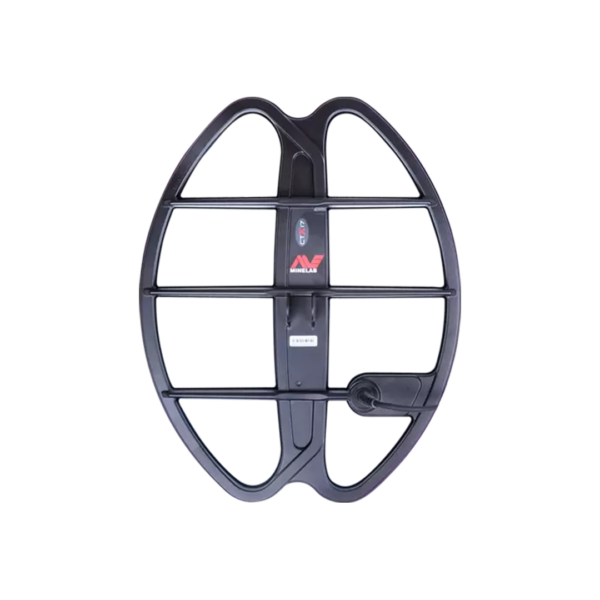

The waterproof 17 x 13-inch elliptical Double-D coil provides maximum depth for specialised treasure hunting. It is also great for wide ground coverage in open spaces. A protective skidplate is included.
You may also like…
CTX 3030
Feature | Details |
---|---|
Application | Coin, Relic, Jewellery & Beach (waterproof 10ft) |
Technology | FBS 2, Smartfind 2, GPSi, Wi-Stream |
Frequency/Transmission | Multiple frequencies: 1.5 – 100kHz |
Coil (standard) | 11-inch waterproof Double-D smart coil |
Audio Output | Built-in speaker, standard ¼-inch non-waterproof socket, custom waterproof socket (Minelab accessory headphones only) |
Headphones Supplied | KOSS UR30 (100 ohm) supplied with detector (non-waterproof) |
Visual Display | Full colour LCD with backlight and adjustable brightness (1–10) |
Backlight | Yes |
Product ID | 88961 |
USB Connectivity | USB interface for XChange 2 PC software |
Memory | Settings saved automatically while detecting and remain until changed or reset |
Depth Indication | Accurate gauge active in normal detecting and Pinpoint mode |
Detect Modes | 10 fully customisable, including 5 preset (Coins, Beach, Relic, Silver & High Trash) |
Discrimination | Smartfind 2TM 2 dimensional colour discrimination: Ferrous 35, Conductivity 50 – 20 fully customisable discrimination patterns (2 per Search Mode) |
Timings | – |
Audio Tone | Customisable Tone ID Profiles – 1, 2 ferrous (Fe), 2 conductive (Co), 4 Fe, 4 Co, 35 Fe, 50 Co or Combined |
Audio Type | Normal, Long, Smooth & Pitch Hold |
Ground Balance | Auto Compensation and Auto Ground Balance |
Ground Balance Type | – |
Trash Density | – |
Pinpoint | Non-motion with modulated audio and visual crosshair on LCD, 2 modes: normal and sizing |
Sensitivity Adjust | Auto and Manual (1–30) |
Tune / Noise Cancel | Manual & Automatic (11 channels) |
Threshold | Level adjustment (1–50), Pitch adjustment (1–30) |
Target Volume Adjust | Limit & Gain (1 to 30) |
Battery | Li-ion pack with fast charger. 12 V car adapter supplied with Standard Pack only |
Low Battery Alert | Audio & visual indication |
Length | Min 37 in. (940 mm) – Max 55.3 in. (1405 mm) |
Weight | 5.20 lbs (2.36 kgs) including Li-ion battery pack |
Warranty | 3 years control box & coil |
Related Products
Gold Monster 1000 5″ Double-D GM 05 Coil
Manticore M9 Coil 9″ Round Double-D
Lightweight coil for the Minelab MANTICORE.
Minelab 18″ Double-D Commander Coil
Coiltek Goldstalker DD 22″ Coil
This is the serious prospector’s coil of choice for maximum depth and coverage whether searching for treasure or gold.
It is known in the treasure hunting regions worldwide as the cache coil with many users finding ancient artefacts at great depths, some as deep as 7 feet when used with a GPX detector. In open terrain on gold fields its outstanding for path finding and deep nugget hunting. The Double-d (DD) configuration can utilise the Iron Discrimination function on GPX Detectors.
- Compatible with all Minelab SD/GP and GPX detectors.
- Not compatible GPX6000 detectors.
Size
559mm / 22″
Weight
1300g / 38.8oz
Configuration
Double-D (DD) coil
Warranty
2 Years
Skid Plate
Attached
Coiltek Gold Extreme 10×9 inch Coil
The smallest size in the GOLD EXTREME series, this coil has high sensitivity to the small targets with good depth ability.
This coils is a great choice for overgrown, tight terrains and is light weight and easy to manoeuvre.
Compatible with the Minelab SDC2300 detector
Size
242 x 138mm / 10×5″
Weight
545g / 19.2oz
Configuration
Mono loop (MONO) coil
Warranty
2 Years
Skid Plate
Attached
Manticore M15 Coil 15″x12″ Elliptical Double-D
For the Minelab MANTICORE
Minelab Commander 11″ Mono COIL
11″ Monoloop Commander Coil
For GPX 4500 and GPX 5000 detectors.
Minelab 15″x12″ Double-D Commander Coil
15″ x 12″ Double-D Commander Coil
For GPX 4500 and GPX 5000 detectors.
Minelab 18″ Monoloop Commander Coil
Coiltek Gold Extreme 14×9 inch Coil
This large elliptical Gold Extreme coil provides the best ground coverage in the series and maintains excellent depth and sensitivity.
Lightweight and easy to manoeuvre it is a perfect choice for all day use.
- Compatible with the Minelab SDC2300 detector
Size
348 x 225mm / 14×9″
Weight
805g / 28.4oz
Configuration
Mono loop (MONO) coil
Warranty
2 Years
Skid Plate
Attached
