GPX 5000

In Stock
Highlights:
Application Gold Prospecting & Deep Relic
Technology MPS, DVT & SETA
Frequency/Transmission Bi-Level, Advanced Pulse Induction
Coil (standard) 11″ Round Double-D plus 15 x 12-inch Monoloop.
Audio Output 6.35mm (1/4″) headphone/speaker jack.
Headphones Supplied Koss 100 ohm headphones.
Visual Display 64 x 128 pixels, transflective with white backlight.
Backlight Yes with adjustable automatic ‘time-out’.
Product ID 23149
USB Connectivity
Memory Setting changes saved automatically and remain until changed or reset. Factory Presets can be restored on start-up.
Depth Indication
Detect Modes General, Deep, Hi-Mineral, Patch, Hi-Trash & Pinpoint (all user programmable)
Discrimination Iron Reject: range 1 to 10 & Off (All Metal).
Timings Normal, Sensitive Extra, Enhance, Sharp, Sensitive Smooth, Coin/Relic, Salt/Gold & Fine Gold.
Audio tone Variable Control 1 to 100.
Audio Type Quiet, Normal, Deep & Boost.
Ground Balance Automatic Ground Balance, Fixed & Tracking: Slow, Medium & Fast. Quick-Trak button.
Ground Balance Type General, Specific & Ground Balance Off.
Trash Density
Pinpoint
Sensitivity Adjust Rx Gain 1 to 20.
Tune / Noise Cancel Automatic & Manual 0 to 255.
Threshold Adjustable turn control.
Target Volume Adjust Target Volume 1 to 20. Volume Limit 1 to 20.
Battery Lithium-ion rechargeable battery 68Wh with in-built amplifier for speaker use. Approx. 12 Hours use. Supplied with mains and vehicle charger.
Low battery alert Audio alert.
Length 1100mm (43.3”) à 1300mm (51.2”).
Weight 2.4kg (5.3lbs) including 11” coil (excluding battery and accessories). Battery weight 780g (1.7lbs).



WHERE TO BUY

Category:
Description

MPS, DVT & SETA Technology



The GPX 5000 sets a high benchmark in gold detecting technology.  Featuring Minelab’s exclusive technologies, Multi Period Sensing (MPS), Dual Voltage Technology (DVT) and Smart Electronic Timing Alignment (SETA), the high performance GPX 5000 is extremely capable of finding more gold than other brand detectors. From sub-gram nuggets to the elusive ‘retirement nugget’ and everything in between, with the GPX 5000, you can find it.



Eight Soil Timings



8 Timings make the GPX 5000 very versatile. It’s like having 8 detectors in 1. In addition to five of the Timings found on the previous model. The GPX 5000 introduces three new Timings: Coin/Relic, Salt/Gold and Fine Gold.

  • Fine Gold Timing gives even more depth and sensitivity than Enhance — bring home more nuggets even from ground thought to be completely worked out!
  • Salt/Gold Timing is great for all nugget sizes in salty ground — outstanding at the beach!
  • Coin/Relic Timing is the deepest ever for benign ground conditions.

Improved Enhance Timing for more depth.

Improved Electronics

For increased target sensitivity and ground balance performance (compared to previous models)

Six Preset Search Modes

Gives you easy switch on and go detecting. In addition to General and Deep search are: Hi-Mineral, Patch, Hi-Trash and Pinpoint. All six Search Modes can be modified to your personal favourite settings. Menu accessible Search Modes can also be renamed.

Increased RX Gain

Adjustment allows you more precise sensitivity control for optimum performance. (compared to previous models)

Automatic Ground Balance

Options make it easy to adjust the detector to suit all ground conditions. e.g. (Fixed, Tracking, Tracking speed, Ground Balance Type, Quick-Trac button).

Audio Adjustments

Maximize target signals for your personal hearing ability e.g. (Threshold, Tone, Audio Type, Signal Peak, Response, Target Volume, Volume limit, Stabilizer).

Iron Reject

Adjustable to suit the iron trash level where you are detecting.

Motion Control

Adjustable to match your sweep speed and optimise target responses.

Tune (Noise Cancel)

Automatic and Manual options to minimize electrical interference.

Backlight

So that you can read the LCD menu in any light, allowing you to detect day or night. The back light also has an adjustable timeout to help preserve battery power.

Lightweight Li-ion Battery

with inbuilt Speaker Booster capability

Two Included Coils

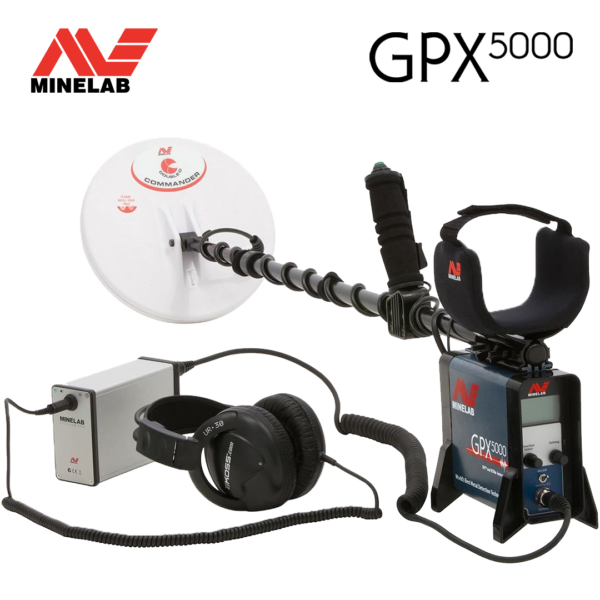

Comes as standard with: 11” Double-D coil plus 15 x 12-inch Monoloop coil, giving you added versatility and value. (pack-outs may vary by region)

Languages

English, Spanish, Russian & Arabic (manual only)
